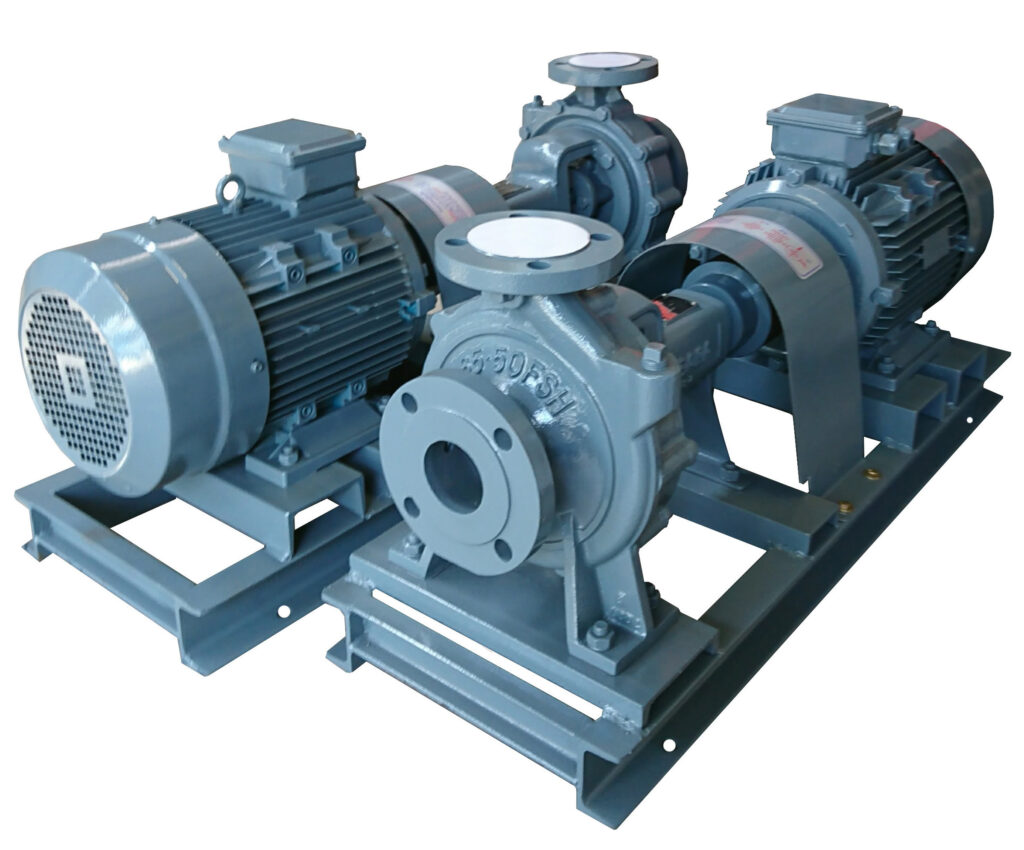

Ebara End Suction Centrifugal Pump
Model : FSA
Application
- Industrial use
- Water supply
- Hot and Cold water supply
- For sprinkling
- Air-conditioning
Specification
- Liquid Clean water @ Temperature Below 80C (178F)
- Max. Working Pressure 10bar for Standard Flange JIS 10K
- Max. Working Pressure 16bar for Standard Flange JIS 16K
- Synchronous Speed 1500 / 3000 RPM.
- Installation Indoors
Meterial
- Impeller Bronze Enclosed
- Shaft Stainless 403
- Seal Gland Packing / Mechanical Seal (Carbon/Ceramic/NBR)
- Casing Cast Iron
Flange Suction & Discharge
- Suction <150 mm.Except 100×65 FSKA JIS 10K
- Suction=150 mm. Except below Models JIS 10K
- Suction=200 mm. Except below Models JIS 10K
