VAREM PRESSURE DIAPHRAGM TANK
TECHNICAL DATA
SPECIFICATIONS
- Shell: deep drawn steel.
- Working temperatures: -10C to +99C
- Test pressure 1,5 times the max. Working pressure.
- Painting epoxy powder coated.
- Max.Pressure 10bar. (150psi.)
- Steel Colour Blue / Colour Red Please Request
- Built Gauge Size 1000Liters Only
- Diaphragm Butyl Rubber
VAREM TANK FEATURES
Shells – Thickness
Varem uses extra thick sheet metal, capable of withstanding extremely high stress levels, to manufacture all its vessels.
Advantages of using extra thick sheet metal:
- Higher fatigue strength of the vessel
- Longer lifespan of the vessel
- Greater resistance to corrosion perforation
- Greater resistance to internal pressure
- Greater resistance to possible knocks and to external stresses
- Volume Size 100 Liters , 200Liters , 300Liters , 500 Liters , 750 Liters , 1000 Liters
MAXIVAREM 10 BAR

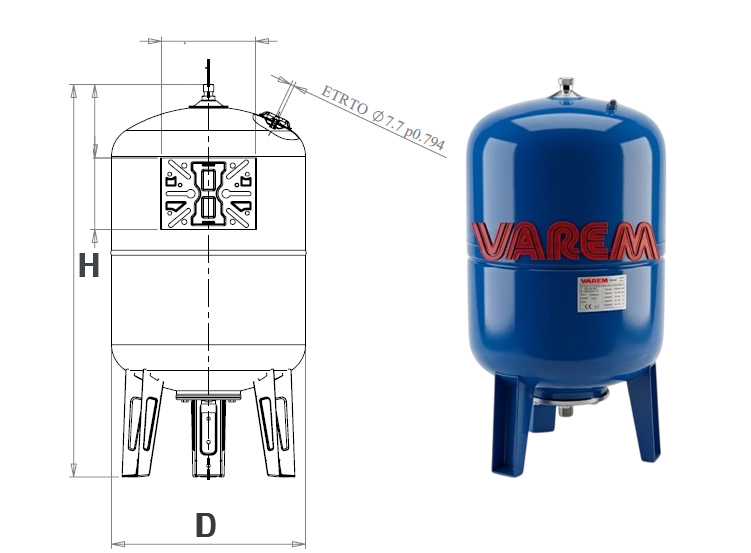

| Volume (Litres) | Code (Butyl Rubber) | Connector (DN) | Dimension (mm) D x H |
| 100 | US 100 362 | 1″ | 450 x 940 |
| 200 | US 200 462 | 1.5″ | 550 x 1270 |
| 300 | US 300 462 | 1.5″ | 630 x 1400 |
| 500 | US 500 462 | 1.5″ | 780 x 1480 |
| 750 | US 750 462 | 1.5″ | 780 x 1940 |
| 1000 | S3 N10 H62 | 2″ | 930 x 1960 |
