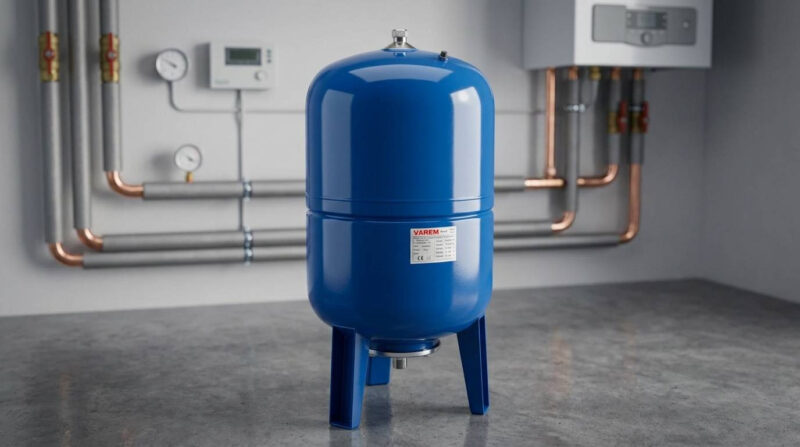

VAREM PRESSURE DIAPHRAGM TANK
Technical data of Varem tanks
Specifications
- Shell: deep drawn steel.
- Working temperatures: -10 / +99
- Test pressure: 1,5 times the max. Working pressure.
- Painting: epoxy powder coated.
- Max.Pressure : 10bar. (150psi.)
- Steel Colour Blue / Colour Red Please Request
- Built Gauge Size 1000Liters Only
- Diaphragm : Butyl Rubber
Varem tank’s features
Shells – Thickness:
Varem uses extra thick sheet metal, capable of withstanding extremely high stress levels, to manufacture all its vessels.
Advantages of using extra thick sheet metal:
- Higher fatigue strength of the vessel
- Longer lifespan of the vessel
- Greater resistance to corrosion perforation
- Greater resistance to internal pressure
- Greater resistance to possible knocks and to external stresses

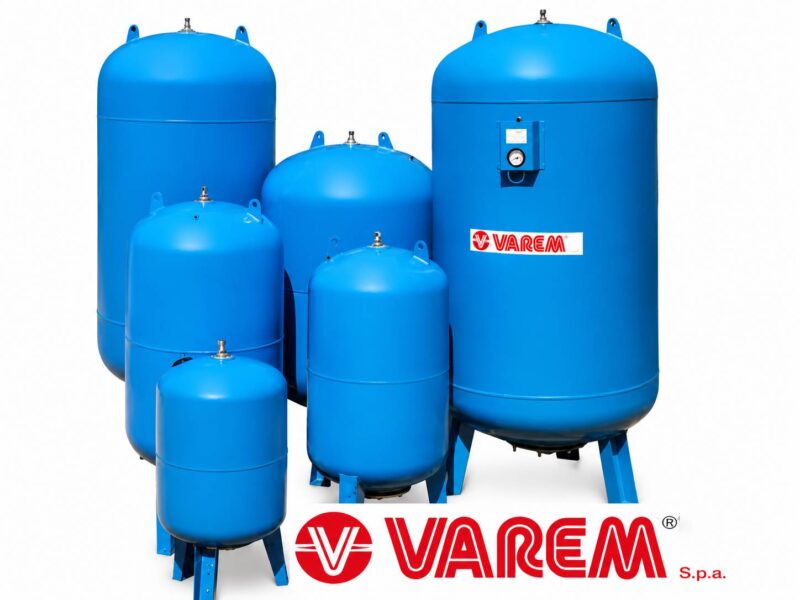

- Volume Size 100 Liters , 200Liters , 300Liters , 500 Liters , 750 Liters , 1000 Liters
Maxivarem 10 bar vertical
| Volume (Litres) | Code (Butyl Rubber) | Connector (DN) | Dimension (mm) D x H x H1 |
| 100 | US 100 362 | 1″ | 450 x 940 x 180 |
| 200 | US 200 462 | 1.5″ | 550 x 1270 x 170 |
| 300 | US 300 462 | 1.5″ | 630 x 1400 x 160 |
| 500 | US 500 462 | 1.5″ | 780 x 1480 x 220 |
| 750 | US 750 462 | 1.5″ | 780 x 1940 x 235 |
| 1000 | S3 N10 H62 | 2″ | 930 x 1960 x 220 |
