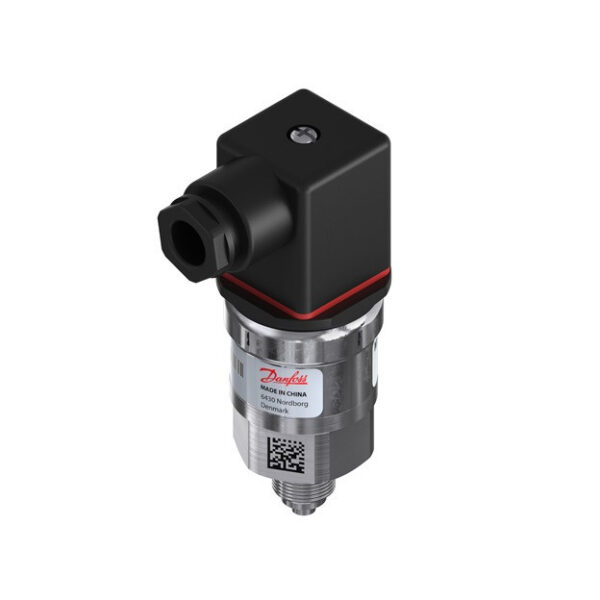

DANFOSS PRESSURE TRANSMITTER
Model : MBS3000
- Supply 10-30Vdc.
- Output 4-20mA. / 0-10Vdc. Request
- Connection Type G 1/4A ISO 228/1 Male
- Ambient -40 – 85C.
- Enclosure Rating IP65
- Measuring Range 0-600Bar
- Response Time 4ms.
- Weight 0.166 KG.
Wire Connection
- Pin1 Supply+
- Pin2 Common-
- DIN-plug, Pg 9, EN 175301-803-A
For general industrial purposes
Danfoss made in Chaina Nordborg Denmark
The compact pressure transmitter, type MBS3000 , is designed for use in industrial and hydraulic applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The compact heavy duty pressure transmitter MBS3050 with integrated pulse-snubber is designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 01 to 0-600 bar. A wide range of pressure and electrical connections are available.
Excellent vibration stability, robust
construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Measuring range [bar]
| ช่วงการวัด (bar) | รุ่นสินค้า (Type) | รหัส(Code No.) |
| 0 – 1 | MBS 3000 – 1011 – 1AB04 | 060G1113 |
| 0 – 1.6 | MBS 3000 – 1211 – 1AB04 | 060G1429 |
| 0 – 2.5 | MBS 3000 – 1411 – 1AB04 | 060G1122 |
| 0 – 4 | MBS 3000 – 1611 – 1AB04 | 060G1123 |
| 0 – 6 | MBS 3000 – 1811 – 1AB04 | 060G1124 |
| 0 – 10 | MBS 3000 – 2011 – 1AB04 | 060G1125 |
| 0 – 16 | MBS 3000 – 2211 – 1AB04 | 060G1133 |
| 0 – 25 | MBS 3000 – 2411 – 1AB04 | 060G1430 |
| 0 – 40 | MBS 3000 – 2611 – 1AB04 | 060G1105 |
| 0 – 60 | MBS 3000 – 2811 – 1AB04 | 060G1106 |
| 0 – 100 | MBS 3000 – 3011 – 1AB04 | 060G1107 |
| 0 – 160 | MBS 3000 – 3211 – 1AB04 | 060G1112 |
| 0 – 250 | MBS 3000 – 3411 – 1AB04 | 060G1111 |
| 0 – 400 | MBS 3000 – 3611 – 1AB04 | 060G1109 |
| 0 – 600 | MBS 3000 – 3811 – 1AB04 | 060G1110 |
