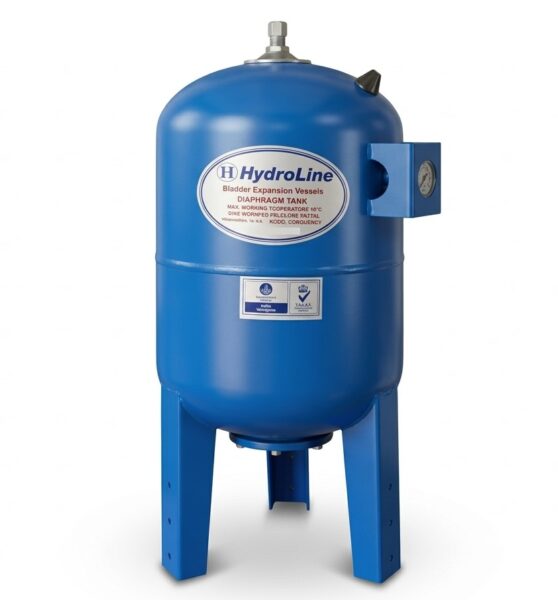

HYDROLINE DIAPHRAGM TANK

HYDROLINE PRESSURE DIAPHRAGM TANK

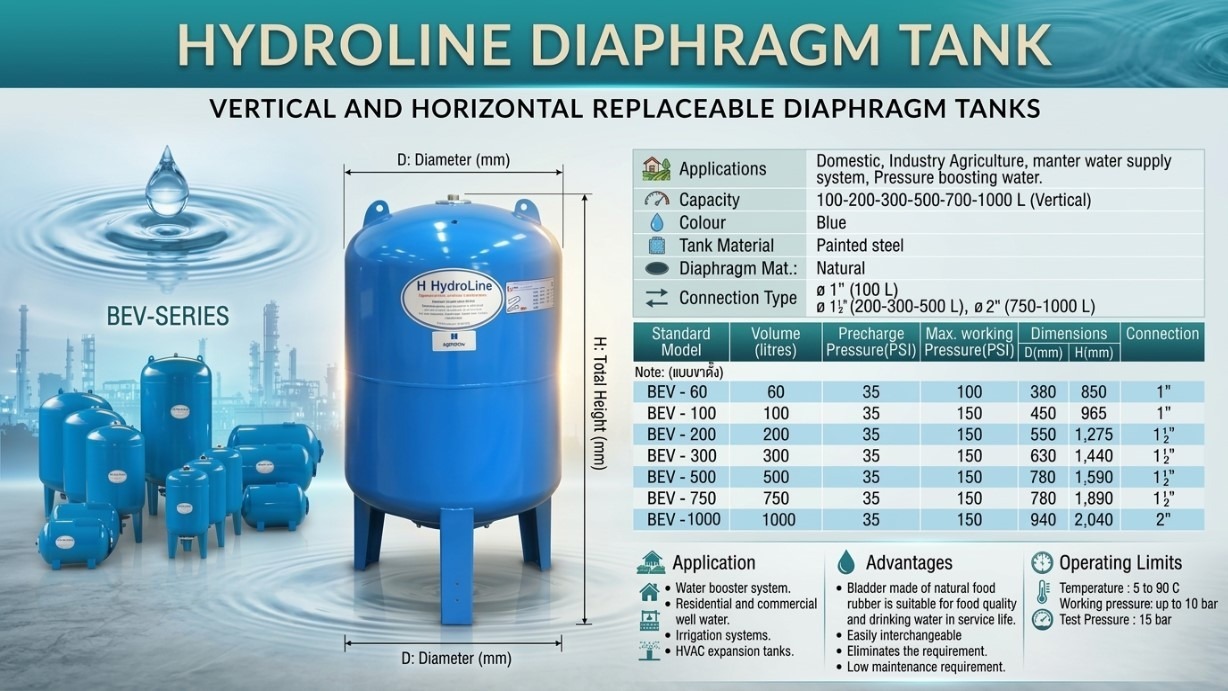

BEV-SERIES

Made In Thailand

• Volume Size 100 Liters , 200Liters , 300Liters , 500 Liters , 750 Liters , 1000 Liters
• Diaphragm : BEV Series Natural Rubber
• Built Gauge Size 100Liters UP
• Temperature : +90C
• Max.Pressure : 10bar. (150psi.)
• Steel Colour Blue

Vertical diaphragm tabks painted steel

• Applications: Domestic, Industry, Agriculture water supply system, Pressure boosting system.
• Capacity: 100-200-300-500-750-1000 L (Vertical)
• Colour: Blue
• Flange: Painted steel
• Tank Material: Painted steel
• Diaphragm Mat: Natural or butyl rubber
• Diaphragm Type: Replaceable
• Connection: * ø 1″ (100 L) ø 1 ½” (200-300-500 L), ø 2″ (750-1000 L)

Design features

• Vertical closed vessels.
• Bladder vessel is suitable for all types of water, even corrosive water.
• Water only comes into contact with the bladder and so eliminates the possibility of corrosion.
• Complete range of capacities from 100 to 1,000 litres.
• Drawdown volume of the bladder vessel is much greater than that of a normal tank without a bladder.
• Replaceable one-piece natural rubber bladder.
• Two points fixed inside the vessel.
