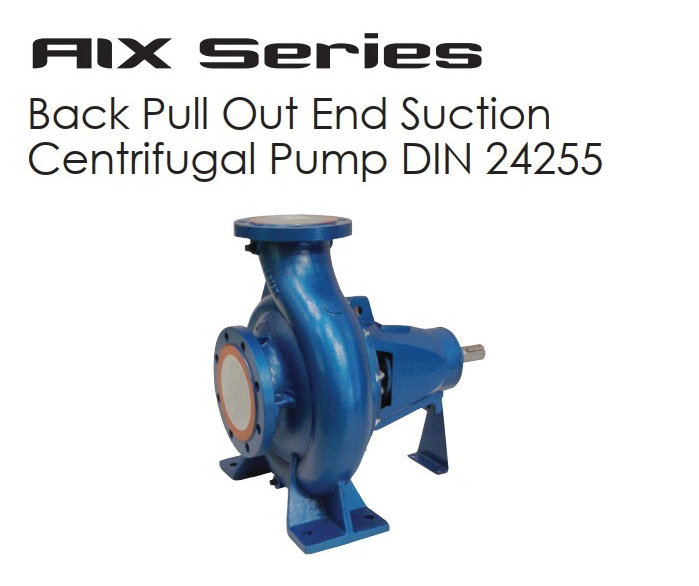

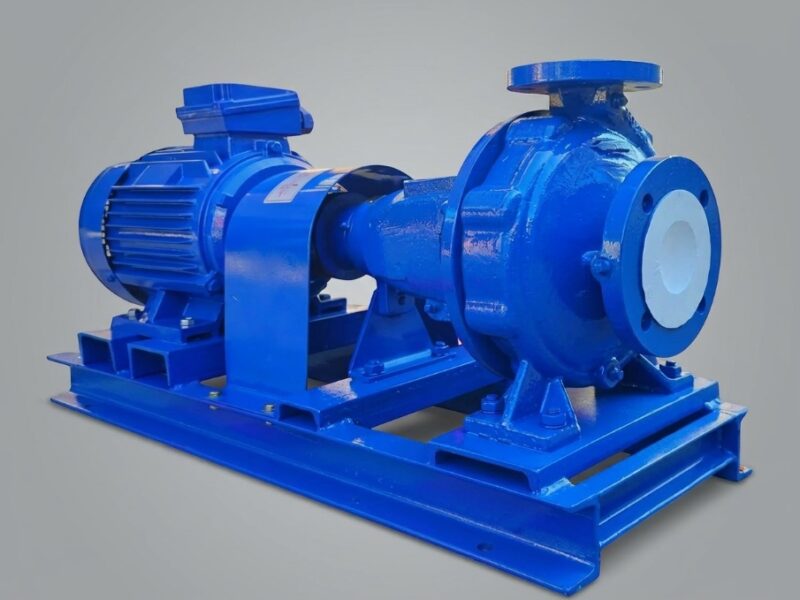

AIX Series
Back Pull Out End Suction
Centrifugal Pump DIN 24255
MARKET SECTORS
Buidling Services, RHVAC,
Agriculture, Civil, Industries
APPLICATION
AD LINE AIX series is suitable for handling Clear water and similar liquid. Mainly used in the following application:
- Water Supply
- Pressure Boosting
- Air Condition
- Refrigeration
- Heating and Ventilating
- Irrigation
- Fire Protection
- Industrial used
SPECIFICATIONS
- Capacity : up to 540 m3/hr , 2 poles / up to 1900 m3/hr ,4 poles
- Head : up to $150 m , 2 poles / up to 90 m , 4 poles
- Pump Size : DN 32-DN 300
- Speed : up to $3500\text{ rpm}$
- Operating Temperature : -10C to 105C For higher rating temperature application, please contact local distributor.
- Operating Pressure : up to 1600 kPa (Maximum pressure will vary depending on particular pump model, higher ratings available on application.)
- Standard Mechanical Seal made of Silicon carbide/ Carbon/ NBR according to DIN 24960 Standard. Alternative materials are available on application.
- Oil Lubrication complete with level sight glass is available on stock.
- Counter-Clockwise Rotation when looking at pump from the suction side.
MATERIALS OF CONSTRUCTION
| Part | Material |
| Casing | Cast Iron |
| Impeller | Bronze |
| Wear Ring | Cast Iron |
| Shaft | Stainless Steel |
| Shaft Nut | Bronze |
| Shaft Sleeve | Stainless Steel |
| Lantern Ring | Cast Iron |
| Gland | Cast Iron |

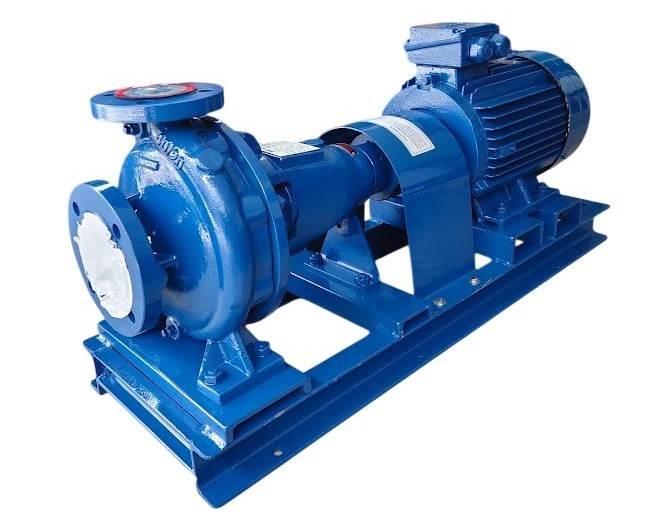

AD LINE BACK PULL OUT FEATURE
This design feature allows the complete rotating element to be removed for servicing without disconnecting pipework. If a spacer coupling is fit then motor does not have to be moved.
On re-assembly of pump coupling re-alignment problems are completely eliminated.
IDENTIFICATION CODE
Example: AIX 300 / 40
- AIX AIX Series name
- 300 Discharge size diameter in mm.
- 40 Impeller nominal diameter in mm. X 10
