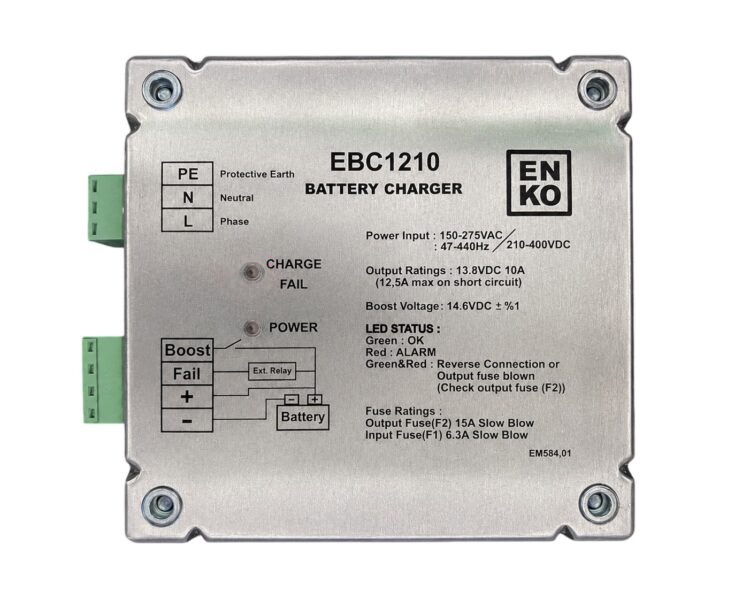

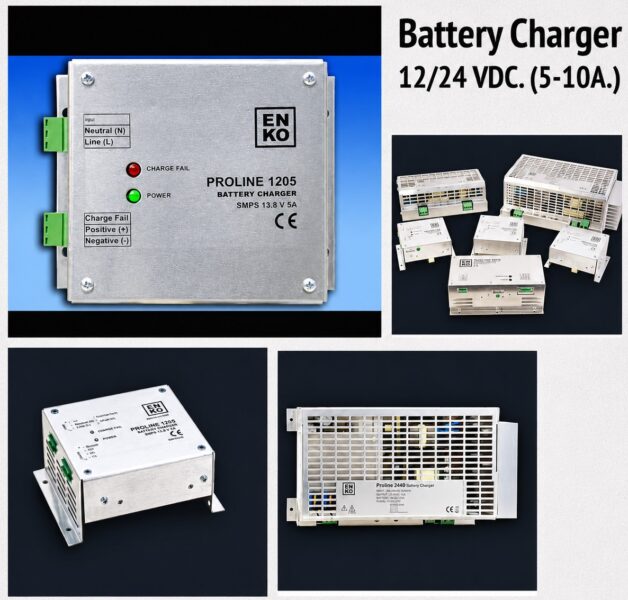

ENKO BATTERY CHARGER

EBC 1205 – EBC 1210 – EBC 2405

Charging batteries in three controlled stages for best performance

ENKO EBC Series Battery Chargers can deliver continuous charging current of 5A and 10A into 12V battery system with EBC 1205M and EBC 1210M (voltage is set to 13.8Vdc, with an option of up to 14.7Vdc), and 5A into 24V battery system with EBC2405M (voltage is set to 27.6Vdc with an option of up to 29.4Vdc).

These battery chargers are designed with performance in mind and special care is taken for protecting and extending the life-time of the battery.

ENKO EBC Series Battery Chargers are designed with “Switched Mode” technology, where the switching transistor has only two states, ON or OFF, which increases the overall efficiency, hence reduces the excess heat dissipation and in return, increasing the device life-time and reliability.

Benefits

Wide input range allows seamless operation under unstable supply conditions
SMPS technology increases the overall efficiency, hence reduces the excess heat dissipation in return, increasing the device life-time and reliability
The capability to continuously work into short-circuit means that a completely depleted battery can be fully charged
Elimination of fans and moving parts maximize the reliability
Low output voltage ripple allows the charger to be used as a Power Supply if required (Must be stated while ordering)
Three stage charging extends the battery life and ensures the battery is ready whenever needed
The input noise filter minimizes the EMC emitted to other components around
User operated Boost Charge function to replenish the battery charge storage capacity to high levels
The alarm output can be connected to a Gen-Set controller for monitoring.

Key Features

160 Vac to 300 Vac input voltage range
Output over-voltage protection
Capability to work continuously into short-circuit
Parallel connection for higher output current rating and redundant operation
Series connection capability for higher output voltage requirements
No cooling fans, all natural convection cooling
Aluminum alloy case for robust handling and easy mounting
Both screw type and rail mounting kit available (Rail mounting sold separately)
Capability to work direct from 250Vdc to 400Vdc supply voltage
Overall efficiency >82%
Boost charge function / Reverse polarity protection
Internal noise input filter
Dry contact alarm output
Compatible with all types of Lead Acid and Nickel Cadmium (Ni-Cad application must be stated upon order) batteries
3 stage battery charging
- Constant Current Mode – to protect the battery cells
- Constant Voltage Mode – to reduce the charge current
- Float Charge Mode – to compensate internal self-discharge

Technical Specifications (EBC 1205 – EBC 1210 – EBC 2405)

Input

AC Input Voltage Range: 150Vac – 300Vac Single Phase Connection (Phase-Neutral)
Operation Frequency Range: 45Hz – 450Hz
DC Input Voltage Range: 250Vdc – 400Vdc
Nominal Input Current (at Full Load):
- EBC 1205 – 0.80A (230Vac Input Voltage)
- EBC 1210 & 2405 – 1.50A (230Vac Inp. Volt)
Efficiency: > 82%
Input Fuse Protection: 6.3A / Slow-blow Type 5x20mm Internal Glass Fuse

Output Specifications

Output Voltage Range:
- EBC 1205 & 1210 – 13.8Vdc (Factory Set, 12.8 – 15 Vdc Optional at Order)
- EBC 2405 – 27.6 Vdc (Factory Set, 25.5 – 30 Vdc Optional at Order)
Output Current: EBC 1205 & 2405 – 5A / EBC 1210 – 10A
Output Ripple Voltage: < 1% Nominal Output Voltage (10Hz – 100KHz)
Output Noise: < 1V pk-pk
Output Short-Circuit Current: 10 % > Nominal Output Current
Reverse Polarity Protection:
- EBC 1205 & 2405 – 10.0A / Slow-blow Type 6.3mm x 32mm Internal Glass Fuse
- EBC 1210 – 15A / Slow-blow Type 6.3mm x 32 mm Internal Glass Fuse

Additional Specifications

Alarm Output / Function: The Solid State Alarm Output is Energized when Operating Under Normal Conditions
Boost Charge Function: The Boost Charge Function is Activated when the Positive Pole of the Battery is Applied to the Related Input Terminal
Output Over-Voltage Protection: Not Supported in this Model
Heat Protection (Power De-Rating): Not Supported in this Model

Environmental Conditions

Operating Temperature Range: -25°C to +60°C (at Full Load and Max Input Volt.)
Storage Temperature Range: -30°C to +80°C Temperature Range
Relative Humidity: 10% rH to 95% rH, Non-Condensing
Cooling System: Convection Cooling (No Fans Used)
Galvanic Isolation:
- Input – Output 4kV
- Output – Earth 500 VAC
ESD Protection: 8kV (Free Air Discharge on the Metal Case)

Environmental Conditions Ctd’

EMC Conformance: IEC/EN 61000-6-3
EMI Conformance: EN 55011 / EN 55022-B
Vibration: 10 to 55Hz. 19.6 m/s² Constant Sweep For 1 Hour X, Y, Z Axis Each
Protection Class: IP20 All Sides, IP00 Mounting Side
Operating Altitude:
- 1200m Operating at Full Load
- 1200m to 4000m De-Rate Linearly from Full Power to 50% Power
