BAUMAN PRESSURE DIAPHRAGM TANK
Made in Italy
- Volume Size 110 Liters , 200Liters , 300Liters , 500 Liters , 750 Liters , 1000 Liters
- Diaphragm : V Series EPDM Rubber / Model BPV Butyl
- Built Gauge Size 200Liters UP
- Temperature : +99C
- Max.Pressure : 10bar. (150psi.)
- Steel Colour Blue

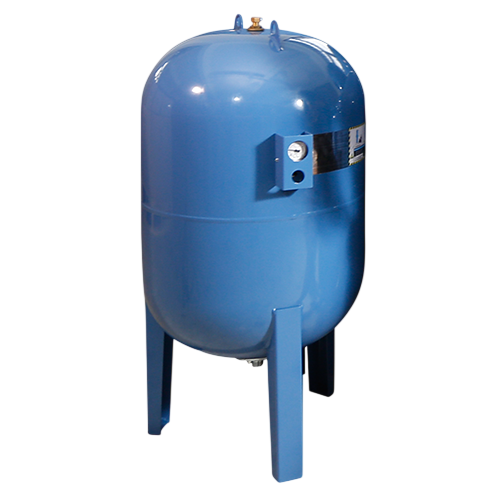

V Series (Vertical Version Pressure Tank)
Technical Specification
- ประเภท: ถังแรงดันแนวตั้ง
- เมมเบรน: สามารถเปลี่ยนได้ [Replaceable membrane] วัสดุ EPDM
- [Pre-Charge Pressure] 2 bar
- [Max Pressure] 10 bar
- [Max Temperature] +99 °C
Technical Specification Table
| Model | Capacity (Ltr) | Diameter (mm) | Height (mm) | Flange (mm) | Connect (inch) |
| V 110 | 110 | 460 | 950 | 150 | 1″ G |
| V 200 | 200 | 585 | 1215 | 270 | 1 1/2″ G |
| V 300 | 300 | 640 | 1390 | 270 | 1 1/2″ G |
| V 500 | 500 | 750 | 1550 | 270 | 1 1/2″ G |
| V 750 | 750 | 800 | 1965 | 300 | 2″ G |
| V 1000 | 1000 | 800 | 2465 | 300 | 2″ G |
