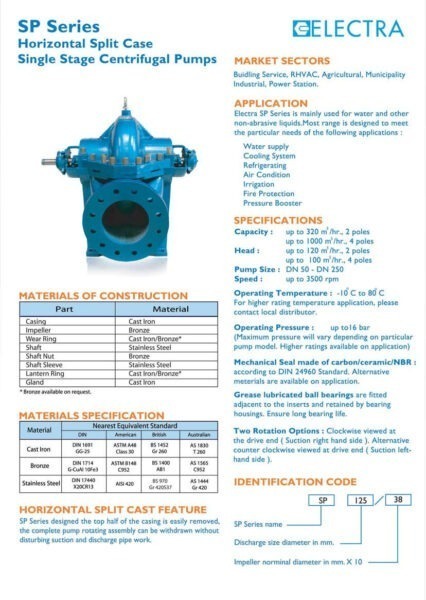

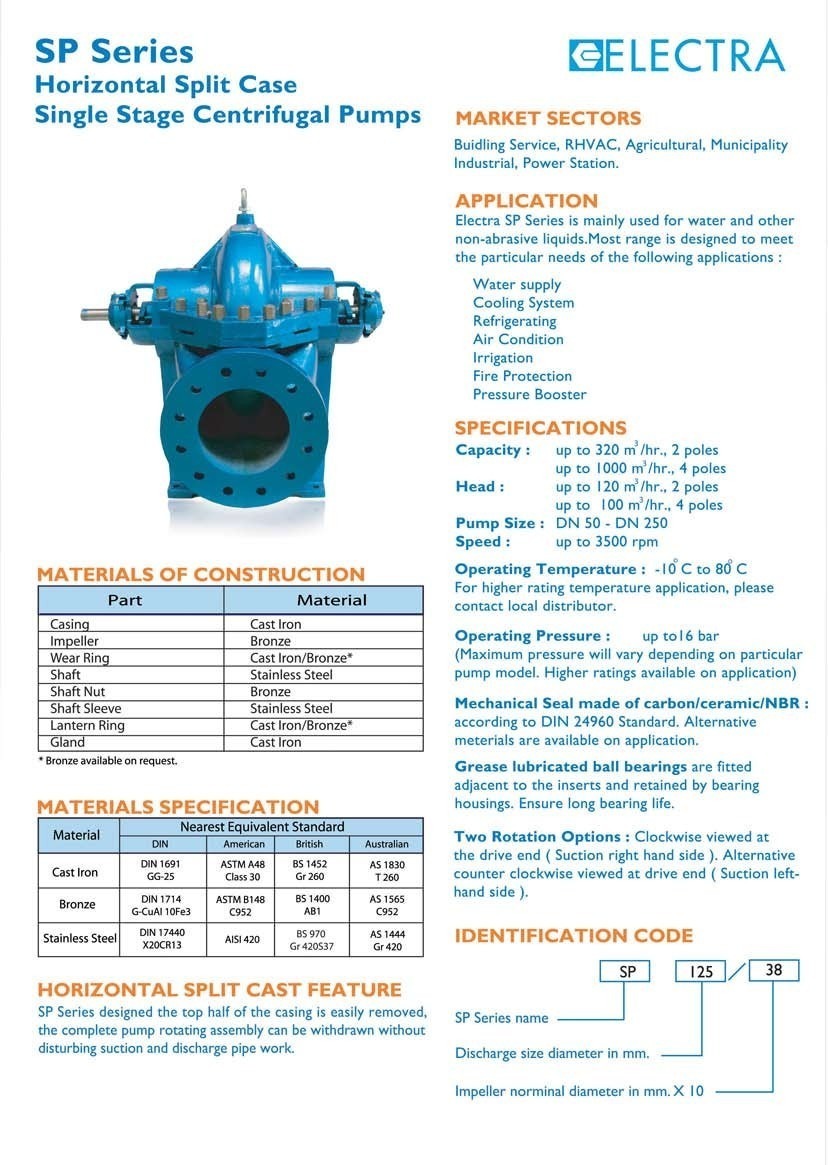

ELECTRA HORIZONTAL SPLIT CASE PUMP
SP SERIES
Horizontal Split Case Single Stage Centrifugal Pumps
Maket selectors
Building Service, RHVAC, Agricultural, Municipality, Industrial, Power Station.
APPLICATION
Electra SP Series is mainly used for water and other non-abrasive liquids. Most range is designed to meet the particular needs of the following applications:
- Water supply
- Cooling System
- Refrigerating
- Air Condition
- Irrigation
- Fire Protection
- Pressure Booster
SPECIFICATIONS
- Capacity: up to 320 m³/hr., 2 poles / 1000 m³/hr., 4 poles
- Head up to 120 m, 2 poles / 100 m, 4 poles
- Pump Size DN 50 – DN 250
- Speed up to 3500 rpm
- Operating Temperature -10°C to 80°C (For higher rating temperature application, please contact local distributor.)
- Operating Pressure up to 16 bar (Maximum pressure will vary depending on particular pump model. Higher ratings available on application.)
- Mechanical Seal made of carbon/ceramic/NBR according to DIN 24960 Standard. Alternative materials are available on application.
- Grease lubricated ball bearings are fitted adjacent to the inserts and retained by bearing housings. Ensure long bearing life.
- Two Rotation Options Clockwise viewed at the drive end (Suction right hand side). Alternative counter clockwise viewed at drive end (Suction left hand side).

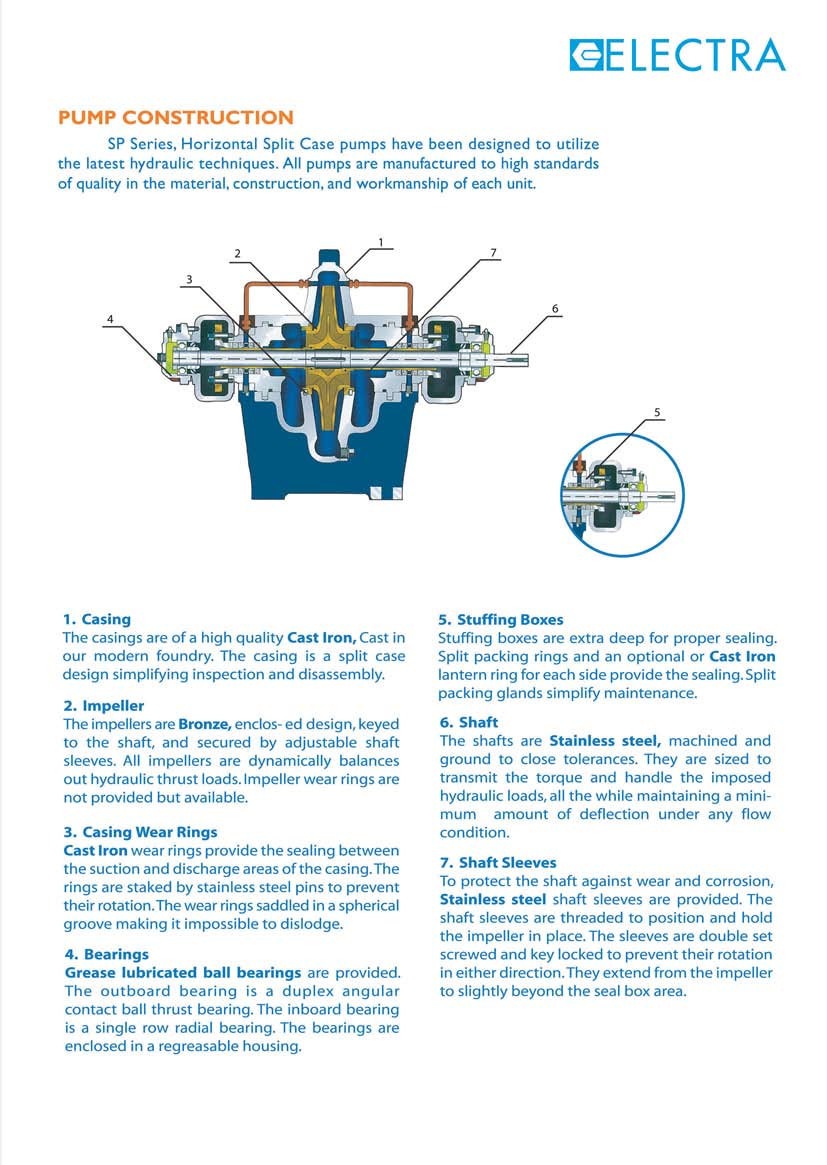

CONSTRUCTION
| Part | Material |
| Casing | Cast Iron |
| Impeller | Bronze |
| Wear Ring | Cast Iron/Bronze* |
| Shaft | Stainless Steel |
| Shaft Nut | Bronze |
| Shaft Sleeve | Stainless Steel |
| Lantern Ring | Cast Iron/Bronze* |
| Gland | Cast Iron |
